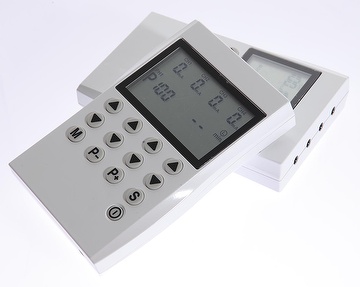

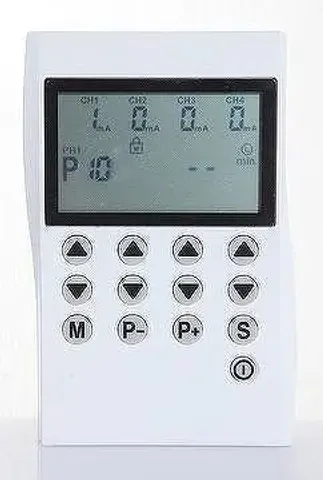

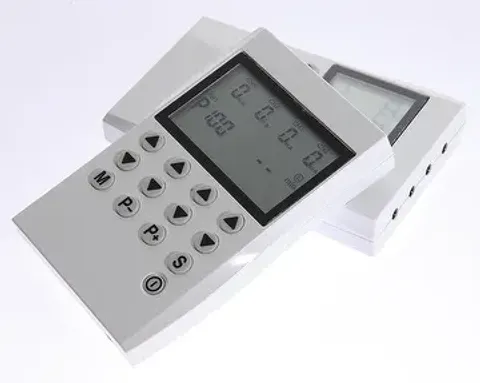

MH8001 Four Channels Pre-Programmed TENS/EMS
Dual Power source: DC 9V battery or mains power adapter.
This MH8001 is a TENS/EMS hybrid stimulator which is designed for muscle stimulation and pain relief.
The Electronic Muscle Stimulation (EMS) function is an advanced muscle exercise muscle toning technique that is an efficiently & effectively supplement to your workout routine.
The EMS units are designed to exercise body muscles by applying a chosen intensity and frequency of electrical current repeatedly in a series of stimulated contraction & relaxation phases.
The unit is provided with 4 controllable output channels, each independent of each other.
The unit with 45 preset programs and 5 programmable programs.
The preset programs are prepared in the factory according to the customer's parameters.
The programmable programs are available to be set and stored by user.
Features:
■ The unit with new technique for a comfortable output waveform.
■ Dual power source: DC 9V battery or mains power adaptor.
■ Large LCD Display easier for elder users to read.
■ Key Pad control, auto-locked to avoid accidental touch.
■ Adjusting Intensity Level precisely: : fully digital designed, the Intensity level control by keypad buttons, Intensity Level can be increased from 0 by 1mA each step up to 100mA. Precise and smooth adjustments in Intensity Level can prevent the user a sudden adjusting the intensity of too much danger.
■ Clear Timer: The timer count down and the balance time can be read from the LCD.
■ Compliance Meter, 100 sets session records.
■ ON and OFF time indicator: the Intensity Level that displays on the LCD screen will accordingly switch among Ramp time, ON time and OFF time. This makes it easier for the user to know to turn up the intensity only during the ON Time, otherwise, the user might accidentally turn the amplitude way up during the OFF Time, and suddenly have too much stimulation when the unit comes back to ON Time.
■ Low battery indicator.
Device Information:
1. Four Channels, isolated between channels.
2. Dual power source: DC 9V battery or mains power adaptor
3. Timer setting from 5-90 Minutes, 5min./step, or continue.
4. Time count down monitored on LCD screen.
5. Automatic switch off after 30 seconds if unit is not in use.
6. CE 2460
7. Waveform: Asymmetrical rectangular biphasic pulse.
8. Amplitude: 0 - 100 mA into 500 ohm load.
9. Selectable pulse width: Adjustable, from 50us - 400us, 10us/step.
10. Pulse Rate: Adjustable, from 2 Hz - 120 Hz, 2Hz~20 Hz in 1 Hz/step and 20~ 120 Hz in 5 Hz/step.
11. Modes:
S (EMS Synchronous) Mode, A (EMS Alternate) Mode
N (Normal) Mode, M (Mixed Frequency) Mode, B (Burst) Mode, SD (Width Modulation) Mode, MR (Rate Modulation) Mode
12. ON (Contraction) Time: Adjustable, from 2-90 seconds, 1sec./step.
13. OFF (Relaxation) Time: Adjustable, from 2-90 seconds, 1sec./step.
14. Ramp Time: Adjustable, from 1-8 seconds, 1sec./step.
15. The compliance meter:
The patient compliance timer can memorize 100 sets of therapy session records;
the total record time is 400 hours; 240 minutes for a single therapy session.
16. Size: 13.5(L)x8.6(W)x2.3(H)(cm).
17. Weight: 160 grams.

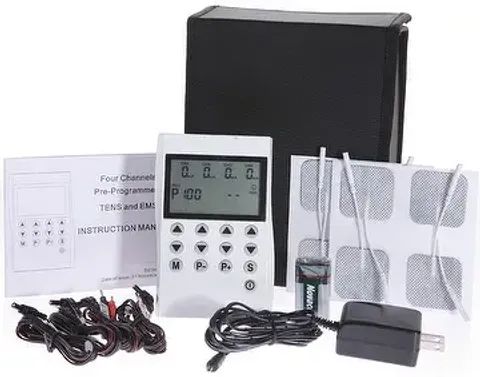

18. 1 Set contains:
1 device;
4 WA01 Lead Wires;
8 EB4040 Electrodes (Two Packs);
1 BA01 super heavy duty battery;
1 Instruction Manual;
1 SB03 Hard Carrying Bag, Color: black.
